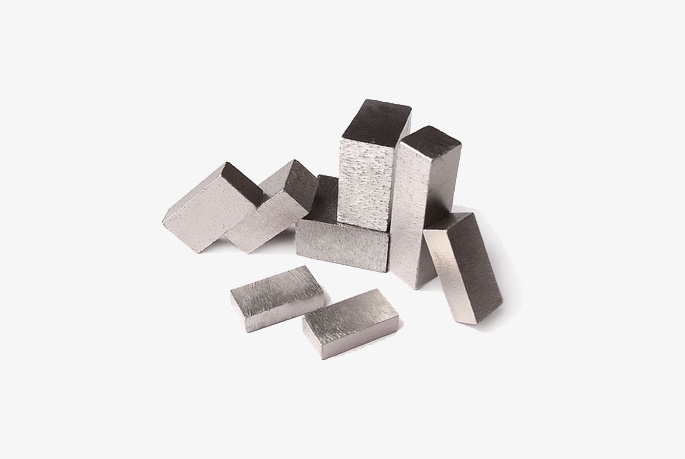

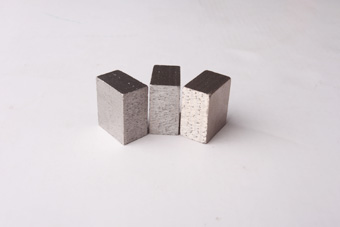

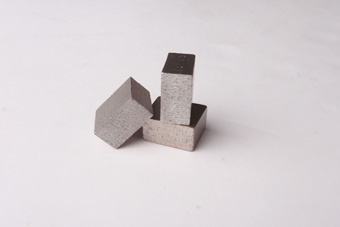

Diamond Segment

Product Description

Features
1.Good sharpness and high cutting efficiency with long life.
2.Smooth cutting with surface and even size.
3.Stable cutting with narrow cutting gap,stone waste reduction


Technical
Product Name Specification Core Thickness Segment Dimension Segment Number Application
JDK Blocking Cutting Segment Φ350 2.2 40x3.5x15 24 Sandstone/Lava Stone/Volcanic Rock
Φ400 2.6 40x3,6x15 28
Φ500 3.0 40x4.2x15 36
Φ600 3.6 40x5.0x15 42
Φ800 4.5 40x6.0x15/16 46
Φ900 5.0 40x7.0x16 64
Φ1000 5.0 40x7.5x16 70
Φ1200 5.5 24x8.5x15 80
Φ1600 7.2 24x9x15 108
Φ1800 7.5 24x10x15 120
Φ2000 8.0 24x11x15 128

Other specification are available upon request.
